نظام تبريد محطة التبريد المتكاملة
204.1 كيلو واط/ميجا واط ~ 342 كيلو واط/ميجا واط
نظرة عامة

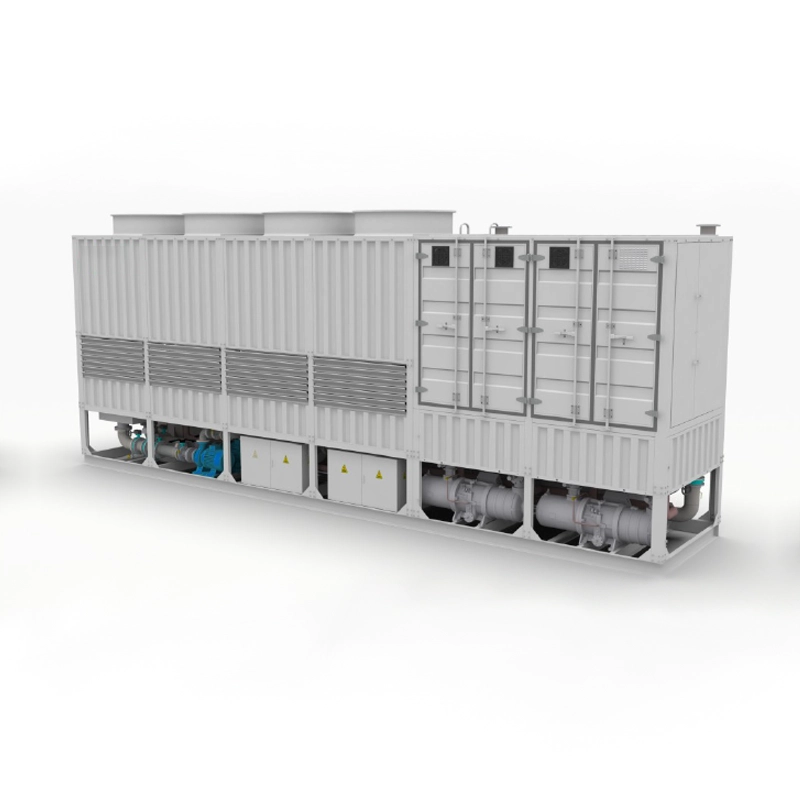

ال محطة التبريد المتكاملة adopts an integrated design concept, integrating multiple functions including a mechanical refrigeration system, cooling tower, chilled water circulation pump, spray pump, water treatment device, and intelligent control system for the cold source system. It can be installed in outdoor areas such as the ground and roof. The unit directly produces chilled water with head pressure. Users can use it by connecting the indoor terminal to the water inlet and outlet of the product.
سمات
تحديد
التطبيقات
تحميل
-
Simple & Easy to Use

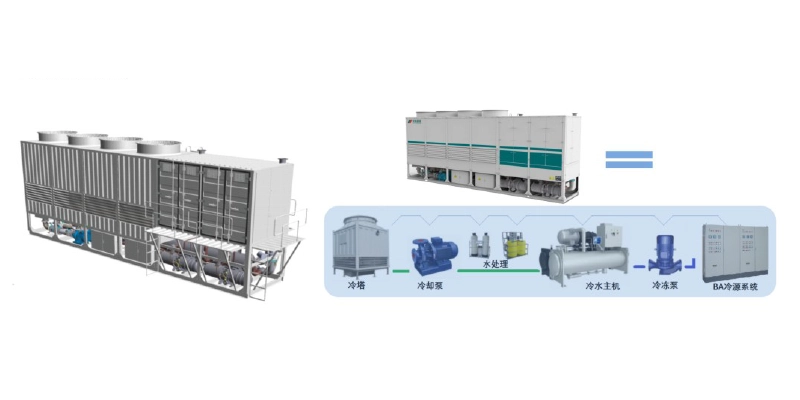

- Ultra-simple application: Ready for use by connecting water inlet and outlet pipes. No need to install complex cold source systems such as refrigeration rooms, chilled water pumps, cooling towers, or water treatment equipment.
- Direct parallel connection for capacity expansion.
- Built-in movable maintenance platform, enabling convenient on-site assembly.
- Open maintenance access.
Cost & Energy Saving
- No refrigeration room required, eliminating additional initial investment and reducing construction costs.
- Only 20㎡ floor space for 1MW cooling capacity.
- Integrated design significantly reduces cooling water transportation energy consumption.
- Environmentally friendly refrigerant R134a.
- Ultra-high comprehensive energy efficiency with a cooling load factor (CLF) as low as 0.06. 10-60% energy saving compared to conventional cold sources.
Intelligent Control
- Equipped with J-Smart integrated energy-saving control system for cold sources.
- Supports group control of multiple units and intelligent monitoring of hydraulic balance.
- Automatically adjusts operating modes based on multiple factors including climate, water temperature, and load rate to maximize energy savings.
Optimized Design
- Patented hybrid cooling tower with switchable operation modes; optional submerged free cooling heat exchanger.
- Full-series variable capacity and variable flow regulation.
- Optional twin-screw or magnetic bearing compressors.
اقرأ المزيد -
مسلسل Capacity Range (kW) طلب JRXS-DS Free Cooling Integrated Chiller Station 500-1700 Year-round cooling scenarios such as IDC, high water temperature JRXS-DH Magnetic Bearing Free Cooling Integrated Chiller Station 500-1650 Year-round cooling scenarios such as IDC, high water temperature JRXS-CS Standard Integrated Chiller Station 500-1700 Commercial use, standard water temperature, no free cooling JRXS-CH Magnetic Bearing Integrated Chiller Station 500-1600 Commercial use, standard water temperature, no free cooling JRXS-ME Mini Chiller Station 60-400 Civil/Industrial, optional free cooling (under development) Energy consumption per MW of cooling capacity (7/12℃ operating conditions) Unit: kW يكتب Chiller (kW) Cooling System (kW) Chilled Water System (kW) Water Treatment, etc. (kW) Total (kW) Magnetic Bearing Integrated Chiller Station 204.1 Included Included Included 204.1 Standard Integrated Chiller Station 218.8 Included Included Included 218.8 Water-Cooled Screw System 178.6 35.4 29 2 245 Water-Cooled Centrifugal System 166.7 35.4 29 2 233.1 Air-Cooled Screw System 312.5 0 29 0.5 342 Note: Water-cooled centrifugal chiller units are based on Level 1 energy efficiency, while water-cooled screw chiller and air-cooled screw chiller units are based on Level 2 energy efficiency.
