| Puissance d'entrée | 208-240V /50Hz/60Hz |
| Poids | 34Kg - 415Kg |

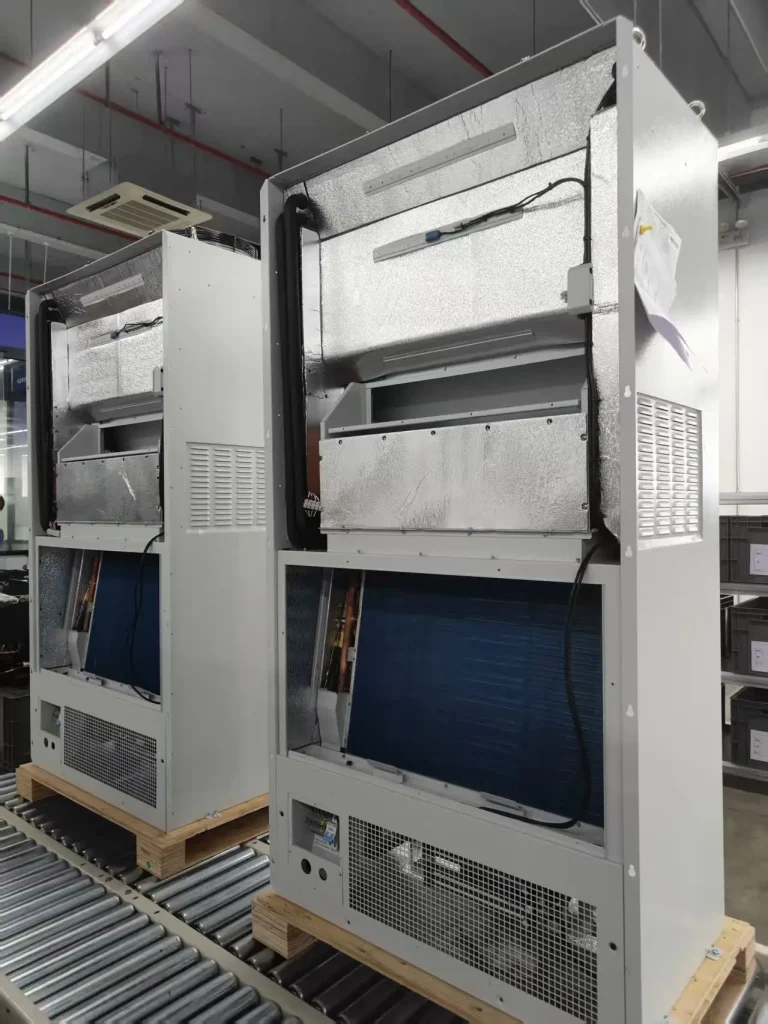

Wall Mount Package Air Conditioning Cooling
5.5 kW ~ 31.5 kW
Aperçus
Soeteck Wall Mount Package Air Conditioning Air cooled, wall mount, indoor and outdoor packaged, suitable for micro data center, mini modular data center solutions.
Caractéristiques
Caractéristiques
Applications
Télécharger
-
• Industry top brand compressor. Highly reliable and efficient.
• Precision cooling controllermonitors and protects unitconstantly. Easy to be integratedinto BMS to display, control andmanage the system.
• Adopts high pressure/high air flowcentrifugal blower suiting criticalequipment cooling condition.

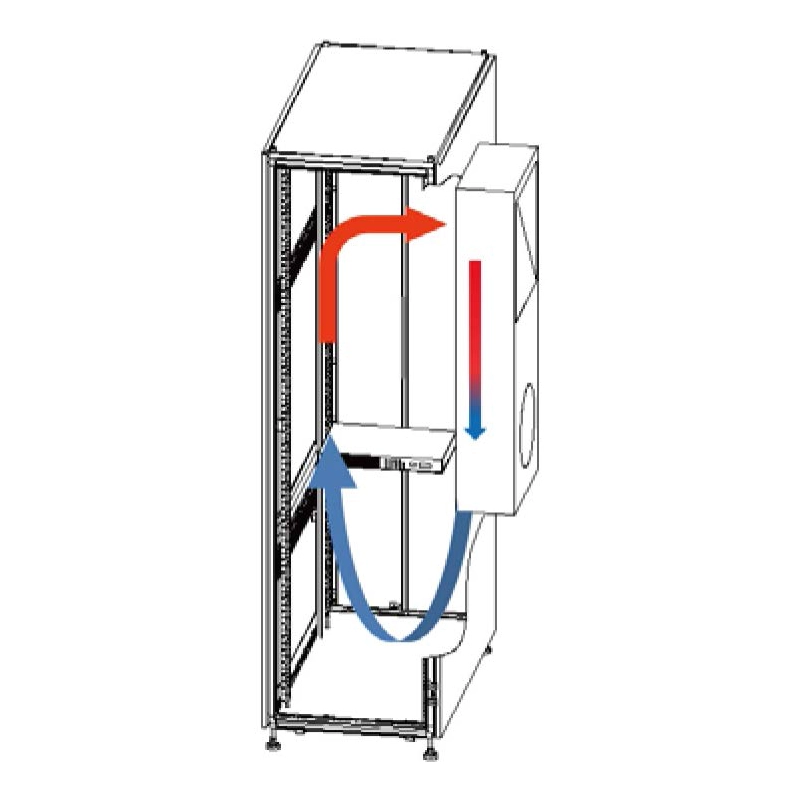

• Packaged design easy forinstallation, service and shipping. Wall mounting to side of cabinetno occupying of IT space.
• Green refrigerant is highly efficientand no ODP.
En savoir plus -
Technical Data SY-001WA SY-002WA SY-005WA SY-007WA SY-012WA SY-017WA SY-020WA SY-025WA SY-030WA Refroidissement total-kW 1.5 2 5.5 7.5 12.5 17.5 21.2 25.1 31.5 SHR-% 100 100 100 100 100 100 100 100 100 Volume d'air-m3/h 380 650 1850 2000 2400 3500 4000 5100 6300 Type de monture Wall Wall Wall Wall Wall Wall Wall Wall Wall Type de refroidissement DX DX DX DX DX DX DX DX DX Hauteur-mm 746 746 1920 1920 2100 2100 2100 2100 2100 Profondeur-mm 200 200 650 650 650 650 650 650 650 Largeur-mm 446 446 900 900 1000 1000 1000 1350 1350 Poids-kg 34 35 180 230 285 320 355 395 415 Power Input¹ 208-240V /50Hz/60Hz /1Ph-2Ph 208-240V /50Hz/60Hz /1Ph-2Ph 208-240V /50Hz/60Hz /1Ph-2Ph 208-240V /50Hz/60Hz /1Ph-2Ph - - - - - FLA A¹ 2.9 3.9 16.5 20.1 - - - - - Power Input² - - - - 380-415V /50Hz/60Hz /3Ph 380-415V /50Hz/60Hz /3Ph 380-415V /50Hz/60Hz /3Ph 380-415V /50Hz/60Hz /3Ph 380-415V /50Hz/60Hz /3Ph FLA A² - - - - 15 18.4 20.8 26 30.9 Power Input³ - - - - 460 V/60 Hz/3 phases 460 V/60 Hz/3 phases 460 V/60 Hz/3 phases 460 V/60 Hz/3 phases 460 V/60 Hz/3 phases FLA A³ - - - - 12.4 15.2 17.2 25.8 26.8 Remarques :
1. Based on 26°C/40%RH working condition and 55℃ outdoor temperature,Cooling Capacity 12.5KW.(Corresponding Model SY-012WA)
2. Based on 26°C/40%RH working condition and 40℃ outdoor temperature,Cooling Capacity 13.9KW.(Corresponding Model SY-012WA)
3. Based on 26°C/40%RH working condition and 30℃ outdoor temperature,Cooling Capacity 15.5KW.(Corresponding Model SY-012WA)
4. The frequency 50Hz or 60Hz is configurable upon order.
5. The refrigerant R134a is used for the ambient temperature up to 55℃ maximum.
6. Inverter Refrigerant Pump（Optional）En savoir plus -
